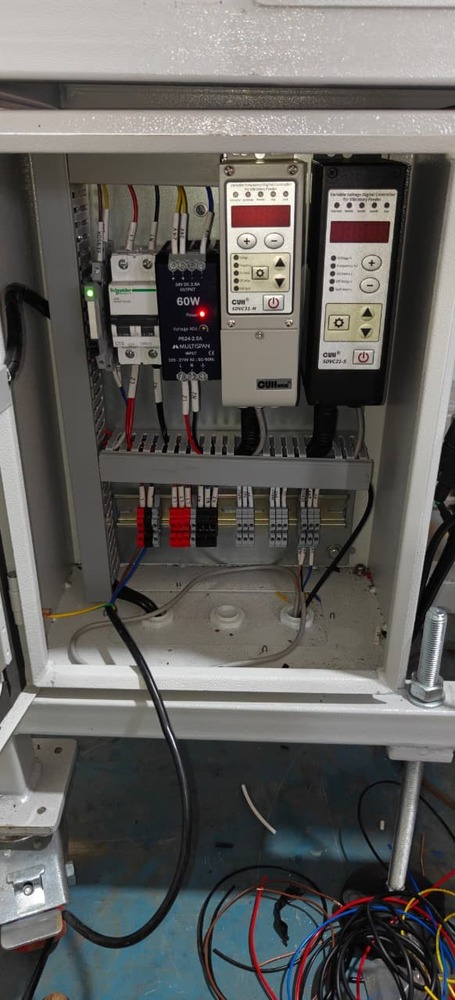

Boiler Feeder Panel

Get a Price/Quote

MOQ : 1 Unit

Boiler Feeder Panel Specification

Rated Operation Voltage
415V

Rated Current
Upto 63A

Base Material
CRCA Sheet Steel

Cooling System
Natural Air Cooled

Rated Insulation Voltage
690 V

Cover Material
MS Powder Coated

Control System
Automatic / Manual

Way
Single/Double Door

Protection Class
Class I

Components
Main Switch, Emergency Stop, Indicator Lamp, Control Switches

Operating Voltage
415V AC

Features
Lockable Door, Powder Coated Finish, Emergency Stop, Manual/Automatic Switch

Current Rating
Upto 63A

Thickness
1.6 mm

Protection Level
IP54

Connectivity Type
Hardwired

Cabinet Material
MS Sheet

Panel Type
Control Panel

Product Type
Boiler Feeder Panel

Material
Mild Steel (MS)

Surface Finish
Matt Finish

Standard
IS/IEC 61439

Surface Color
Powder Coated Grey/White

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
63A

Dimension (L*W*H)
600 x 500 x 200 mm (approx.)

Application
Boiler Automatic Water Feeding

IP Rating
Ip54

Display Type
LED Lamp Indicator

Cable Entry
Bottom/Top Entry Options

Weight
Approx. 18 kg

Earthing Provision
Double Earth Studs Provided

Compliance
CE Marked

Enclosure Type
Wall/Floor Mounted

Ambient Humidity
Upto 90% RH, Non-condensing

Panel Door Locking
Key Operated Lock

Busbar Material
Electrolytic Grade Copper

Mounting Plate
Detachable Mounting Plate

Operating Temperature Range
-10C to 55C

Boiler Feeder Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

Boiler Feeder Panel About

Discover the ineffable reliability of our Boiler Feeder Panel with an illustrious pedigree, designed for seamless plant automation. Now at a reduced price, this breathtaking panel offers superior control and safety, boasting CE marking and IP54 protection for assured compliance. Crafted from mild steel, with powder-coated finesse, it supports up to 63A at 415V AC. With limited stock available, seize this special opportunity to enhance your facility with bottom/top cable entries, double earthing, and hardened MS construction-a true marvel of industrial engineering.

Comprehensive Boiler Feeder Panel for Plant Automation

The Boiler Feeder Panel, meticulously crafted for both specific and general industrial applications, serves as the command center for automatic water feeding in boilers. Highly favored by manufacturers, service providers, and plant operators, this panel guarantees efficiency and operational safety in a broad range of industrial settings. Its flexible mounting options and robust construction make it an essential addition across diverse manufacturing facilities, ensuring seamless workflow and process management.

Vast Export and Domestic Reach with Certified Quality

Our Boiler Feeder Panel successfully reaches main export markets throughout Asia and India, facilitated by efficient exchange and timely delivery networks. On domestic ground, its arrival is prominent in local manufacturing hubs, where reliability is paramount. Certified to IS/IEC 61439 and proudly CE marked, every panel fulfills stringent quality standards, reflecting our ongoing commitment to excellence from exchange to installation, providing peace of mind to every client upon delivery.

FAQ's of Boiler Feeder Panel:

Q: How does the Boiler Feeder Panel enhance plant operations?

A: The Boiler Feeder Panel automates and regulates water feed into boilers, reducing manual intervention, improving efficiency, and minimizing downtime in plant operations.

Q: What are the main features of the enclosure for this panel?

A: The panel enclosure is constructed from powder-coated mild steel, supports wall or floor mounting, offers bottom/top cable entry, and includes IP54-rated protection and a lockable door for enhanced security.

Q: Where can the Boiler Feeder Panel be installed?

A: It can be installed in factories, manufacturing units, and boiler systems, thanks to its robust design, flexible mounting plate, and double earth studs provision.

Q: What certifications does the Boiler Feeder Panel comply with?

A: The panel is CE marked and adheres to the IS/IEC 61439 standard, ensuring high safety and quality benchmarks.

Q: When is the optimal time to replace or upgrade an existing feeder panel?

A: Consider upgrading when your current system fails to meet safety standards, shows signs of wear, or lacks modern automation and manual/automatic features provided by this advanced panel.

Q: What is the process for ordering and receiving this product?

A: Ordering is straightforward via direct contact with the supplier. Delivery is coordinated to match client schedules, ensuring the panel arrives on time, ready for installation.
